FOC Vector Sine Wave Brushless Electric Scooter DC Motor Adult Scooter Accessories

FREEGO FOC vector sine wave brushless Scooter DC Motor

Controller Solution Specifications:

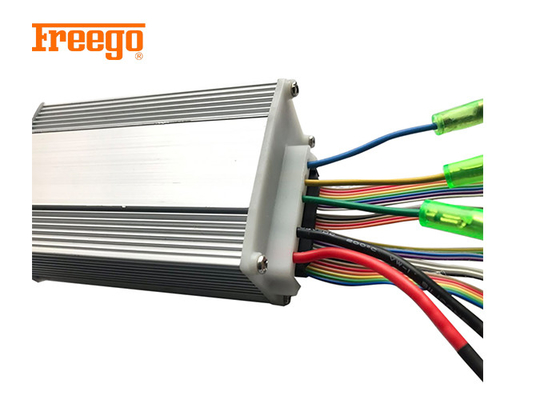

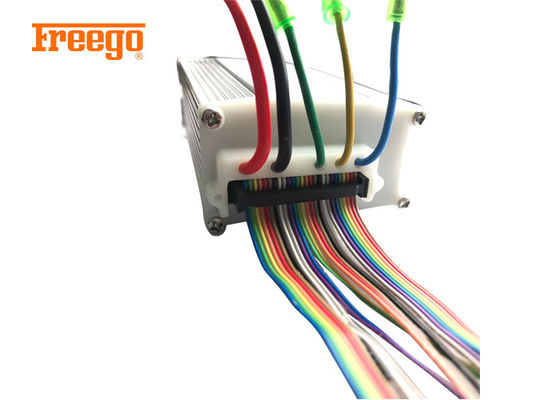

36v electric scooter brushless dc motor controller
Feature:
1) Rated voltage: DC 36v
2) Rated power: 350w

3) Max current: 12.5A
4) Controller category: Brushless direct current
5) Applicable model:electric scooter,electric vehicle

Function:
1) Super low noise when start up
2) Speed limited (selected)
3) Under-voltage protection
4) Over-current protection
5) E-ABS bake
6) Pedal Assistant (PAS)
7) Water proof

Solution specifications:

Hardware parts

1. Using ST Microelectronics master chip, M0 core, low power consumption, high computing speed.

2. Imported mos tube, high voltage range, low internal resistance, lower heat generation, higher efficiency.

3. Switching power supply, lower static power consumption.

4. Widened and thickened aluminum shell for better heat dissipation. Glue seal IP68 waterproof performance.

5. Wide voltage supply. Compatible with 24-60v and can be set directly through the meter without manual changes.

6. The control line assembly is out of the line, making installation and maintenance more convenient.

Software parts

1. Motor magnetic field tracking technology, phase independent control algorithm, more precise control.

2. Hall phase sequence self-learning Easy installation Easy wiring No need to cumbersome phase sequence for higher productivity.

3. Hall offset self-learning, intelligent compensation motor Hall installation error, give full play to the maximum performance of different motors.

4. Single-cycle FOC algorithm with higher control frequency and more accurate current.

5. Drive dead zone compensation technology to make the control current smoother and drive more reliable.

6. Weak magnetic control technology can effectively improve the base speed of the motor, and can be balanced. and switched. It can achieve high torque for climbing, high speed of flat road, make the motor climb stronger and the road is faster.

7. Drive axle saturation control technology to achieve 100% duty cycle operation to maximize power utilization.

8. Single Hall repair technology, still works well after Hall damage.

9. Flexible closed-loop EABS control technology to achieve softer brakes and shorter braking distance.

10. Cruise, 0 start, non-zero start, reverse, lock brake, light, full function use.

Our FAQ:

1. You are a manufacturer or a trading company?

We are manufacturer specializing in research & producing the electric skateboard. We keep in lead position over these years due to our advantanges in mainboard. Also we have export liscense.

2. Could I get a sample to check your quality ?

Yes. Sample will be delivered after we received your payment .

3. What's your delivery time ?

Sample will be ready within 2 days after payment received.

4. Can we customize own own Logo? and motor?

Yes, we accept OEM.

5. What's the quality guarantee policy ?

12 months.(man-made broken & water penetrations are excepted)

If your order have any problem, please contact us , we will do our best to help you, Thank you !!
